This damper is mounted vertically in primary (axle, truck frame) and secondary (between truck and car body) systems to absorb vertical vibration.

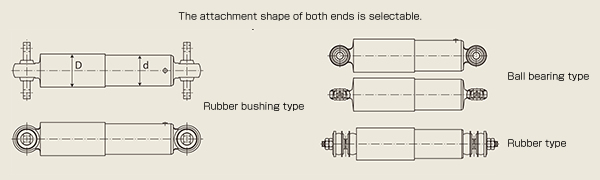

No | Oil reservoir outer dia. [mm] | Dust cover outer dia. [mm] | Max Damping Force [kN] |
---|---|---|---|
d | D | ||
1 | 76 | 83 | 5 |
2 | 90 | 98 | 10 |
3 | 102 | 110 | 20 |
・When detailed data are necessary, please perform an inquiry individually.
・When you want size except the above, please do an inquiry individually.

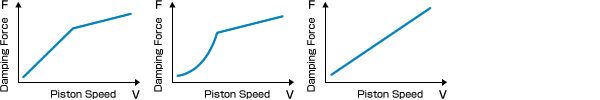

Damping Force Characteristics
・When you want characteristic except the above, please perform an inquiry individually.
