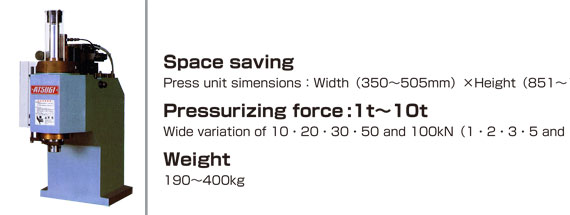

Hydraulic Press unit

Image:Press unit specifications

Press unit specifications list[1]

Data table
Type
[*1]		 M type (Production End) L type
Image:AP--BE/L
[M, MH, MLH]		 Image:AP--BE/L
[L, LH]
Weight(kg) M,MH type  140
MLH type  190		 260
AP press basic model AP-1M,2M,3M
AP-2MH
AP-3MLH,5MLH		 AP-1L,2L,3L
AP-2LH,3LH,5LH
Press unit
Specifications
/  Outline		 [*2]
Image:Press unit Specifications Outline
Data table
Type
[*1]		 KL type
AP-5KL-BE/L AP-10KL-BE/L
Weight(kg) 250 400
AP press basic model AP-5KL AP-10KL
Press unit
Specifications
/  Outline		 Image:Press unit Specifications Outline

*1Model is displayed by adding "-BE/l" on the basic model.

*2This displays a delivery figure. In set up, remove the motor and oil tank in accordance with the "Set up manual" attached to the machine. then, complete set up.

Special specifications example

  • (Motor and oil tank are mounted on upper position of the machine.)
    M,L type special specifications (I)
    Image:M,L type special specifications (I)
  • (Motor and oil tank are mounted on lower position of the machine.)
    M,L type special specifications (II)
    Image:M,L type special specifications (II)

Press unit specifications list[2]

Data table
Type[*1] M type (Production End) L type KL type
Image:AP--BE/L
[M, MH, MLH]		 Image:AP--BE/L
[L, LH]		 AP-5KL-BE/L AP-10KL-BE/L
Width
B		 B1(mm) 270 (170)
B2(mm) 235 180 185
Height
H		 H1(mm) 852 851 1,125
H2(mm) 250 250 350
H3(mm) 35 35 40
Installed
plane
L		 L1(mm) 415 510 647 625
L2(mm) 125 180 180 225
L3(mm) 210 250 300 400
L4(mm) 234 234 360 370
