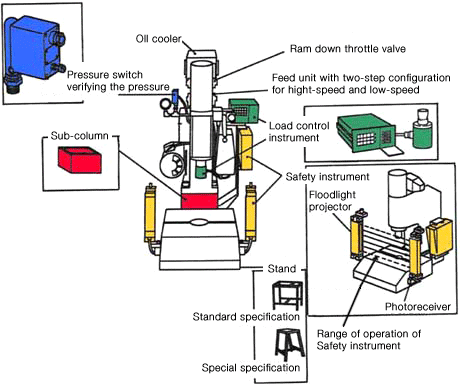

| Option | Explanation | |
|---|---|---|
| Instruments for controlling load during press operation |
Load control instrument | Digital display of force used in work. Composed of detection part (load cell) and display device (amp), and provides a digital display of the load on the press fit or caulking at each stroke. (In manufacturing press fit and caulking, process control is optimal. This allows high quality process planning.) |
| Pressure switch for verifying the pressure | Device for verifying that the press is attaining the fixed, set pressure. | |
| Safety instrument | Ensures safety during press operations. | |
| Oil cooler | Device for cooling hydraulic oil. (Do not use if oil temperature exceeds 65 degrees). |
|
| Ram down throttle regulation |
Ram down throttle valve | The throttle valve for controlling the ram downing speed. |
| Feed unit with two-step configuration for high-speed and low-speed | Ram down-throttle unit is divided into two steps. [High-speed] [Low-speed] |
|
| Sub-column | Press's open height can be enlarged. (please choose a value from 50,100,150....50mm through....500mm. 400mm is the max for 10 ton unit) (Please use caution: if additional height is added, the overall height will also enlarge.) |
|
| Stand | Stand for press installation. Please inquire as standard and specialized specifications are available. Sitting operation : 650mm Standing operation : 780mm |
|
| Coating color (color specification) | Standard color for standard equipment is hammertone blue-grey (if you wish to specify a color, please specify a color from the standard color examples given by the Japan Paint Manufacturers Association. Please inquire, as extra time may be needed for color-matching.) | |
